Streched bar lcd display

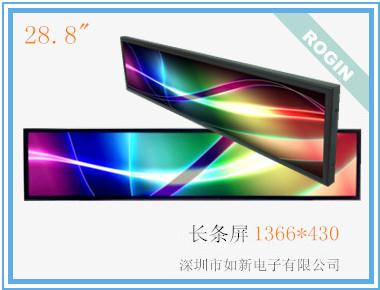

28.8-inch high brightness strip-type LCD screen with 1366*430pixels/1000nit

Zoom
Name: 28.8-inch high brightness strip-type LCD screen with 1366*430pixels/1000nit
Name: Shenzhen Rogin Electronics CO., LTD
Model: RX288-TXP-10
Brief:

Rogin strip-type LCD screen is widely used on commercial display and public display in special places for its special sizes by cutting the glass of original screen. Recommended application field is: advertising player, bus, taxi and train. 37.2-inch strip-type LCD screen has features following:1. LED backlight with 1000nits 2.1920*361pixels resolution 3.High brightness4.Wide aspect ratio:16:3 5. Average life expectancy:60,000hrs 6. Supporting VGA,HDMI,SD card/USB. It is widely used on rail traffic signs and catering chain signs.

Details

Specification

Screen Diagonal: 731.5

Active Area: 697.7(H)x 220(V )mm

Pixels: 1366 x 430

Pixel Pitch: 0.51075(per one triad) x 0.51075mm

Aspect Ratio: (16:5)

Contrast Ratio: (4000:1)

Brightness: 1000nit-2000nit

Pixel Arrangement: R.G.B. Horizontal Stripe

Display Mode: TN Mode, Normally black,

Optical Response Time: 6.5ms (Type.,on/off)

VDD Nominal Input Voltage VDD :(+12.0V)

Electrical Interface: Dual channel LVDS

Support Color: 16.7M colors (RGB-8bit )

Dimensions: 733 x 255x 28mm

Weight: 4.5Kg

Working temperature: 0°C~50°C

Storage temperature: -20°C~60 °C

Key Features

1. Sunlight readable

2. LED backlight

3. High shock & Vibration resistance

4. Low power consumption

5. High uniformity

6. High contrast

7. Wide viewing angle

8. Low voltage driver circuit design/equipment excellent safety performance

9. Professional driver chip images showed more clearly, the stability, the color performance is better

10. Life span: 60,000hrs

11. Full viewing angle

12. Supporting 3G/Wifi network with Android system
