Bar-type LCD display

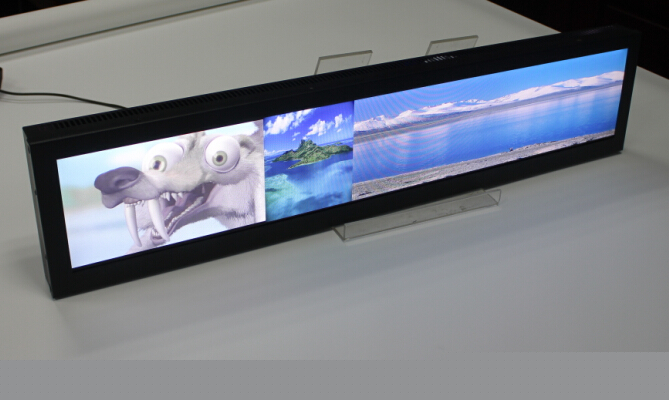

28inch bar type high brightness lcd display with 1366x256,16:3 display ratio, normally black

Zoom
Name: 28inch bar type high brightness lcd display with 1366x256,16:3 display ratio, normally black
Name: Shenzhen Rogin Electronics CO., LTD
Model: RX280-TXP-C10
Brief:

Shenzhen Rogin 28inch bar type high brightness lcd display supports 1366x256 resolution, 16:3 display ratio and 3000:1 contrast, the prodcut is in mass production now . It is widely used in vehicle area

Details

Specification

Screen Diagonal: 28 inch

Display Area: 699.5（H）x 130.3(V)mm

Pixels:1366X232

Display Ratio: 16:3

Contrast Ratio: 3000:1

Brightness: 700~1000nit

Pixel Arrangement:R.G.B. Horizontal Stripe

Display Mode: TN Mode，Normally Black

Response Time: 6.5ms

Interface: Dual channel LVDS

Display Color: 16.7M ,8bit

Dimensions: 729.5x159.5x27.1mm

 Working temperature:-20°C～70°C

Storage temperature:-30°C～85 °C

View angle: 89/89/89/89

Application: Vehicle display, special display devices
