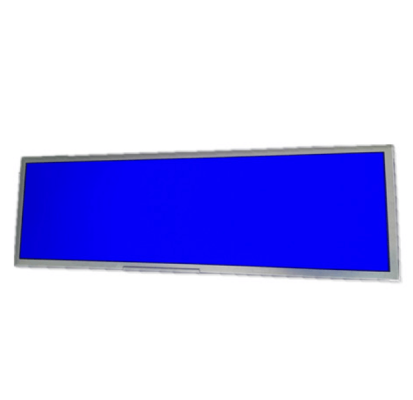

Streched bar lcd display

38 inch strip-type LCD display with high brightness and high defination. It supports 5000:1 contast ratio and widely used advertising player, bus, taxi .

Zoom
Name: 38 inch strip-type LCD display with high brightness and high defination. It supports 5000:1 contast ratio and widely used advertising player, bus, taxi .
Name: 深圳市如新电子有限公司
Model: RX380TXP-C07
Brief:

Rogin 38inch strip-type LCD screen is widely used on commercial display and public display in special places for its special sizes by cutting the glass of original screen. It supports 1920x540 resolution 16:4.5 display ratio and 5000:1 contrast ratio, the beightness is 700~1000nit option. and Recommended application field is: advertising player, bus, taxi and train.

Details

Specification

Screen Diagonal: 38inch

Display Area: 930.24Hx 261.63(V)mm

Pixels: 1920x540

Display Ratio: 16:4.5

Contrast Ratio: 5000:1

Brightness: 700

Pixel Arrangement: R.G.B. Horizontal Stripe

Display Mode: TN ModeNormally Black

Response Time: 6.5ms

Interface: Dual channel LVDS                           \

Display Color: 16.7M

Dimensions: 972x304x29.6mm                                                 Working temperature:-20°C70°C

Storage temperature:-30°C85 °C

View angle: 88/88/88/88

Application: Vehicle display, special display devices



Key Features

1. Sunlight readable

2. LED backlight

3. High shock & Vibration resistance

4. Low power consumption

5. High uniformity

6. High contrast

7. Wide viewing angle

8. Low voltage driver circuit design/equipment excellent safety performance

9. Professional driver chip images showed more clearly, the stability, the color performance is better
