Streched bar lcd display

28.8 inch bar type lcd display with double side, 1920x540 resolution, the display ratio is 16:4.5 and the brightness is 500~1500nit

Zoom
Name: 28.8 inch bar type lcd display with double side, 1920x540 resolution, the display ratio is 16:4.5 and the brightness is 500~1500nit
Name: 深圳市如新电子有限公司
Model: RX288TXP-C05
Brief:

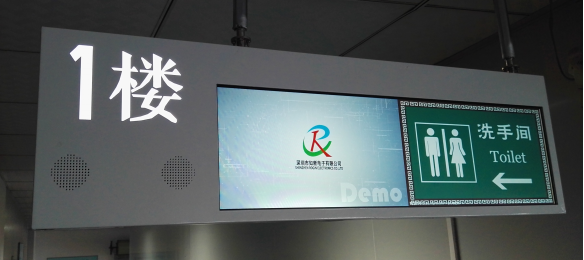

Rogin 28.8inch bar type lcd display with double side, 1920x540 resolution, the display ratio is 16:4.5 , the contrast ratio is 4000:1 , the brightness is 500~1500nit optional and it is widely used in smart bus and hotel advertising board.

Details

Basic Information

Display Area: 696.0Hx 195V)mm

Pixels:1920x540

Dot Pitch: 0.51075 x 0.51075mm

Display Ratio:(16:4.5)

Contrast Ratio:(4000:1)

Brightness:500~1000nit

Pixel Arrangement:  R.G.B. Horizontal Stripe

Display Mode: TN ModeNormally Black

Response Time: 6.5ms Type.on/off)

Input Voltage:+12.0V

Interface: Dual channel LVDS                           \

Display Color: 16.7M colors RGB-8bit

Power Consumption:32W

Dimensions:737 x 238x 25mm

 Working temperature:0°C50°C

Storage temperature:-20°C60 °C

External Source Inerface:VGA/HDMI/USB

Scanning Frequency(Hz) :60Hz

Packing: Carton Box  /Wooden Box
