Streched bar lcd display

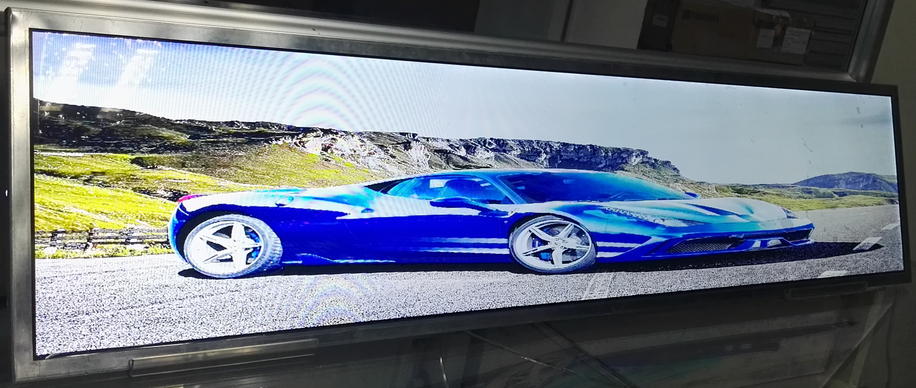

The longest 57.5 inch strip-type LCD display with 1920x405. It supports 4000:1 contast ratio and widely used advertising player and bus system

Zoom
Name: The longest 57.5 inch strip-type LCD display with 1920x405. It supports 4000:1 contast ratio and widely used advertising player and bus system
Name: 深圳市如新电子有限公司
Model: RX575TXP-C07
Brief:

Rogin 57.5 inch strip-type LCD display is the longest bar type lcd display in current market, It has high brightness and high defination. It supports 4000:1 contast ratio and high brightness from 700nit to 1500nit , widely used advertising player and bus system.

Details

Specification

Screen Diagonal: 57.5inch

Dimensions: 1471.5*345.9*29mm

Display Area:   1428.4H*301.2(V)mm

Pixels: 1920x405

Dot Pixel: 0.744*0.744

Display Ratio: 16:3.375

Contrast Ratio: 4000:1

Brightness: 700nit

Power Consumption: 74W

Pixel Arrangement: R.G.B. Horizontal Stripe

Display Mode: TN ModeNormally Black

Response Time: 8ms

Interface: Dual channel LVDS                           \

Display Color: 16.7M

Working temperature:  0°C50°C

Storage temperature:   -20°C60 °C

View angle: 89/89/89/89

Application: Vehicle display, special display devices



Key Features

1. Sunlight readable

2. LED backlight

3. High shock & Vibration resistance

4. Low power consumption

5. High uniformity

6. High contrast

7. Wide viewing angle

8. Low voltage driver circuit design/equipment excellent safety performance

9. Professional driver chip images showed more clearly, the stability, the color performance is better
