Streched bar lcd display

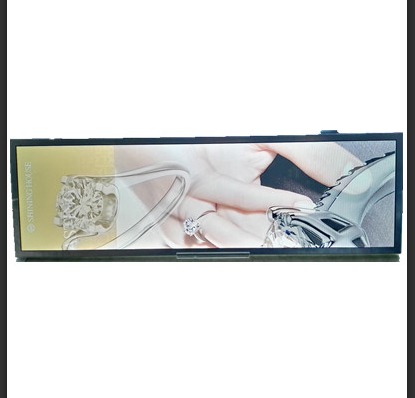

41.5 inch bar type cutting lcd display with 1920*540, LED backlight,low power consumption and brightness is 700~1500nit option

Zoom
Name: 41.5 inch bar type cutting lcd display with 1920*540, LED backlight,low power consumption and brightness is 700~1500nit option
Name: 深圳市如新电子有限公司
Model: RX415TXP-C01
Brief:

Shenzhen Rogin 41.5 inch self -developed and self-cut bar type lcd display, supports 1920*540, 16:4.5 display ratio and 2500:1 contrast ratio. LED backlight,low power consumption and brightness is 700~1500nit option. It is widely used on vehicle devices and digital display board

Details

41.5寸长条型液晶显示屏



屏幕对角线:  41.5

外观尺寸: 1057.5*326.5*29.7mm

活动区域: 1021.5*H*289.5(V)mm

点距: 0.53025*0.53025

像素: 1920x540

显示比例: 16:4.5

对比度: 2500:1

亮度: 700nit

功耗: 46W

像素排列:R.G.B.垂直条形

显示模式:TN,常显黑

响应时间: 6ms

电气接口:Dual channel LVDS ,

显示颜色:16.7M

表面处理: Anti-Glare ,3H

工作温度: 0°C5C

储存温度: -2C60℃

视角:89/89/89/89

关键特征

1.阳光下可读

2.LED背光源

3.低功耗

4.高对比度

5.宽视角

6.高耐冲击和振动

7.低压驱动电路设计/设备安全性能极佳

8.专业驱动芯片画面显示更清晰、稳定、色彩表现更佳



Specification

Screen Diagonal: 41.5 inch

Dimensions: 1057.5*326.5*29.7mm

Display Area: 1021.5*(H*289.5(V)mm

Pixels: 1920x540

Dot Pixel: 0.53025*0.53025

Display Ratio: 16:4.5

Contrast Ratio: 2500:1

Brightness: 700nit

Power Consumption: 46W

Pixel Arrangement: R.G.B. Horizontal Stripe

Display Mode: TN ModeNormally Black

Response Time: 6ms

Interface: Dual channel LVDS                           \

Display Color: 16.7M

Working temperature:  0°C50°C

Storage temperature:   -20°C60 °C

View angle: 89/89/89/89

Application: Vehicle display, special display devices



Key Features

1. Sunlight readable

2. LED backlight

3. High shock & Vibration resistance

4. Low power consumption

5. High uniformity

6. High contrast

7. Wide viewing angle

8. Low voltage driver circuit design/equipment excellent safety performance

9. Professional driver chip images showed more clearly, the stability, the color performance is better
