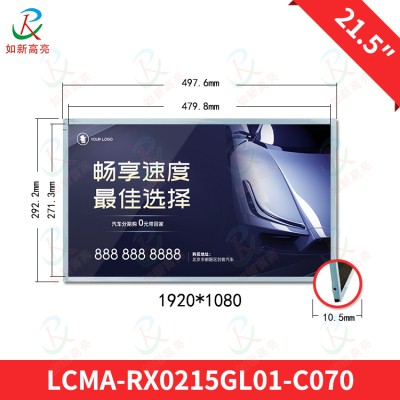

21.5inch LCD display

Model size: 21.5inch

Part NO.:   LCMA-RX0215GL01-C070

Resolution: 1920x1080

Aspect ratio: 16:9

Display Mode： Normally black

Surface treatment: Haze 25%

Display area:  476.064×267.786 mm (W*H)

Outline dimension: 497.6(H) x 292.2(V) x 10.5(D)

Touch panel: no

Working temperature：0~ 50 °C

Storage temperature:-20 ~ 60 °C

Brightness: 350~700 cd/m2 (Typ.)

Contrast:  1000 : 1 (Typ.)

Response time: 14/25(Typ.) (Tr/Td) (ms)

Viewing angle: 89/89/89/89(Typ.) (left/right/up/down)

18.5inch FHD lcd display with 1000nit

Model size: 18.5 inch

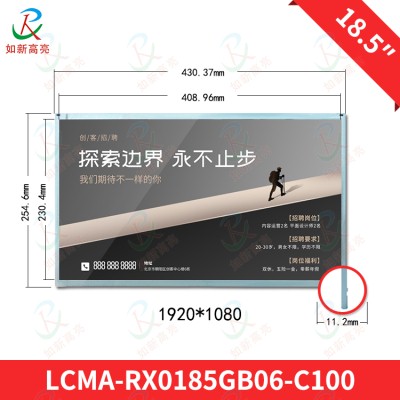

Part NO.:   LCMA-RX0185GB06-C100

Resolution: 1920x1080

Aspect ratio: 16:9

Display Mode： Normally black

Surface treatment: Haze 25%

Display area: 408.96×230.04 mm (W*H)

Outline dimension: 430.37×254.6 *11.2mm (L*W*D)

Touch panel: no

Working temperature：0~ 50 °C

Storage temperature:-20 ~ 60 °C

Brightness: 500~1000 cd/m2 (Typ.)

Contrast:  1000 : 1 (Typ.)

Response time: 14/20(Typ.) (Tr/Td) (ms)

Viewing angle: 89/89/89/89(Typ.) (left/right/up/down)

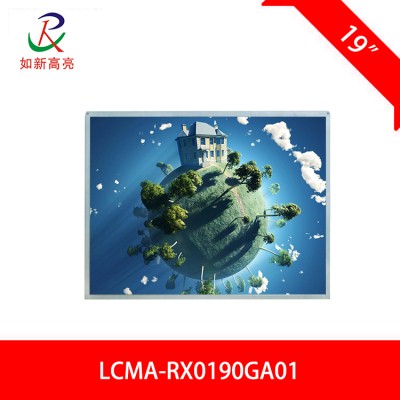

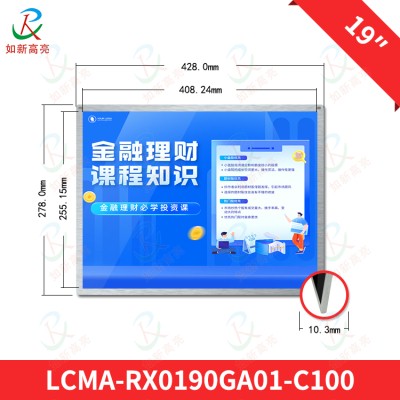

Model No:LCMA-RX0190GA01

Screen Diagonal: 19inch

Dimensions: 428.0*278.0*10.3mm

Display Area:408.24（H）*255.15(V)mm

Pixels: 1440*900

Dot Pixel: 283.5*283.5um

Contrast Ratio: 1000:1

Brightness: 1000nit

Power Consumption: 30.5W

.B. Horizontal Stripe

Display Mode:Normally White

Response Time: 5ms

Interface: Dual channel LVDS                           \

Display Color: 16.7M

Working temperature:  0°C～50°C

Storage temperature:   -20°C～60 °C

View angle:85/85/80/80

Application: Vehicle display, special display devices

Key Features

1. Sunlight readable

2. LED backlight

3. High shock & Vibration resistance

4. Low power consumption

5. High uniformity

6. High contrast

7. Wide viewing angle

8. Low voltage driver circuit design/equipment excellent safety performance

9. Professional driver chip images showed more clearly, the stability, the color performance is better

Specification

Screen Diagonal: 4inch

Display Area: 71.856（H）*70.176(V)mm

Pixels: 480(RGB)*480

Dot Pixel: 0.14977*0.1462mm

OUtline dimension:78.8*81.7*2.0mm

Contrast Ratio: 800:1

Brightness: 280nit

Response Time:25ms

Pin NO: 51PIN

Display Mode:Normally Black

Interface: RGB

Specification

Screen Diagonal: 4inch

Moduel NO.:  RX040F-3600-RTP

Dimensions: 57.14*96.85*3.60mm

Display Area: 51.84（H）*86.41(V)mm

Pixels: 480*800

Dot Pixel:  0.108*0.108mm

Contrast Ratio: 700:1

Brightness: 280nit

Response Time:25ms

Display Mode:Normally White

Interface: MCU

Pin NO.: 40pin

Specification

Panel NO. RX550-Z20
Application：commercial display(Outdoor lcd player/outdoor bus station/outdoor TV/electronic newspapar-reading board)
Key Features
1.Sunlight readable
2.Wide angle of view
3.High Uniformity
4.High contrast
5.LED Backlight
6.High shock & Vibration resistance
7.Low Power Consumption
8.Low voltage driver circuit design/equipment excellent safety performance
9.Professional driver chip images showed more clearly, the stability, the color performance is better
10.Life Span(60,000hrs)
structure features
Pixels: 1920(RGB)×1080 (FHD)
Aspect ratio: 16:9
Pixel arrangement: Vertical Stripe
Pixel pitch: 0.210×0.63mm (W*H)
Surface treatment: Hard coating (2H)
Display area: 1209.6×680.4 mm (W*H)
Viewing area: 1217.6×688.4mm (W*HG)
Appearance size: 1237.4×713.8 ×42.0mm (W*H*D)


Other features
Display mode: IPS，Normally black,transmissive
Panel brightness: 1500 cd/m2 (Typ.)Contrast: 5000 : 1 (Typ.) (透射)
Display color: 16.7M(8-bit)
Color saturation: 75%
Response time: 6(Typ.)(Tr/Td) (ms)
Viewing angle: 89/89/89/89 (Min.)(CR≥10) (left/right/up/down)
Signal types: LVDS
Small signal class: LVDS(2 ch,8-bit)
Backlight position: Direct type light source
Backlight type: WLED
Backlit life: 60K (Typ.) (hrs)
Working temperature：0°C～50°C
Storage temperature：-20°C～60 °C


 Specification

Model NO. : RX420-C10-S
Application :commercial display（Semi outdoor digital signage /high brightness LCD advertising player)

 Pixels:1920(RGB)×1080 (SXGA)

 Aspect ratio:16:9

 Pixel Arrangement: RGB Vertical Stripe

 Pixel Pitch: 0.1615×0.4845mm

 Surface treatment: Anti-glare,Hard coating (3H)

 Display area: 930.24×523.26 mm

 Viewing area: 958.4×551.3mm

Appearance size: 958.4×551.3 ×10.8/31.4mm
Other features

      Display Mode: IPS，Normally Black，Transmissive

      Panel brightness: 1000 cd/m2 (Typ.)

      Contrast）:1500 : 1 (Typ.)

      Display color: 16.7M /1.06b(8-bit/8-bit+dithering )

      Color saturation: 75%

      Response time: 12(Typ.)(Tr/Td) (ms)

      Viewing Angle:89/89/89/89 (Typ.)(CR≥10) (left/right/up/down)

      Signal types: LVDS

      Small signal class: LVDS(2 ch,8/10-bit)

      Panel power:  ≤90W (Typ./Max.)

      Backlight position: Side -into backlight source

      Backlight type: WLED

      Backlit life: 60K (Typ.) (hrs)

      Working temperature：0°C～50°C

      Storage temperature：-20°C～60 °C

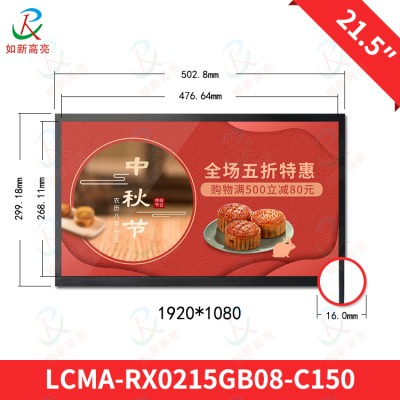

Specifiacetion

Mode  NO. : RX215-C10-S

Pixels: 1920(RGB)×1080 (SXGA)

Aspect ratio: 16:9

Pixel Arrangement: RGB Vertical Stripe

Pixel Pitch: 0.08275×0.24825mm

Surface treatment: Anti-glare ，Hard coating (3H)

Display area: 476.64×268.11 mm

Viewing area: 479.8×271.3mm

Appearance size: 495.6×292.2 ×10.3mm

Other features

Display Mode）:TN，Normally white，Transmissive

Panel brightness: 1000 cd/m2 (Typ.)

Contrast: 2500 : 1 (Typ.)

Display color: 16.7M (8-bit )

Color saturation: 75%

Response time: 5(Typ.)(Tr/Td) (ms)

Viewing Angle:85/85/80/80 (Typ.)(CR≥10) (left/right/up/down)

Signal types: LVDS

Small signal class: LVDS(2 ch,6/8-bit)

Panel power: ≤40W (Typ./Max.)

Backlight type: WLED

Backlight  life）:60K (Typ.)

Working temperature：0°C～50°C

Storage temperature：-20°C～60 °C

Specifications

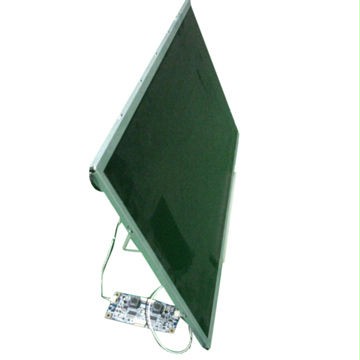

Model No.: RX190-C10-JSQ

Description: 19"TFT LCD, LED Backlight,1000 nits, WXGA+

Backlight Mode: Side-in LED Backlight

Display Area:412.2x 259.15mm

Brightness: 1000 cd/㎡

Resolution: 1440(RGB)x900 (WXGA+)

Display Scale: 16:10

Contrast Ratio:1000：1

Pixel Pitch: 0.2835(H)×0.2835(V)mm

Viewing Angle: 160o（H）/160o(V)

Display Colors: 16.7M (6-bit + HIFRC)

Response Time: 7 (Typ.) (Tr/Td) (ms)

Operation temperature: 0oC~50oC

Interface: LVDS

Power Consumption: 50W

Input Voltage for Panel: 5.0V (Tpy.)

LED Driving Board: DC 12V

Control Board: □2621V2.0 □2668V1.0 □2261V1.0-A

OSU Menu: Brightness, Contrast, H/V Position, Color, Phase, Clock….

Dimensions: 428.0x278.0x16.5 (W x H x D) mm

Weight: 2.2kg (Net)

Optional

 □ Temperature control  □Auto-dimming

Ordering Information

RX190-C06-JSQ: 19" \600nits \SXGA \LVDS \25W \LED B/L

RX190-C10-JSQ: 19" \1000nits \SXGA \LVDS \30W \LED B/L

RX190-C10-JSQ-1: 19" \1000nits \WXGA+ \LVDS \50W \LED B/L

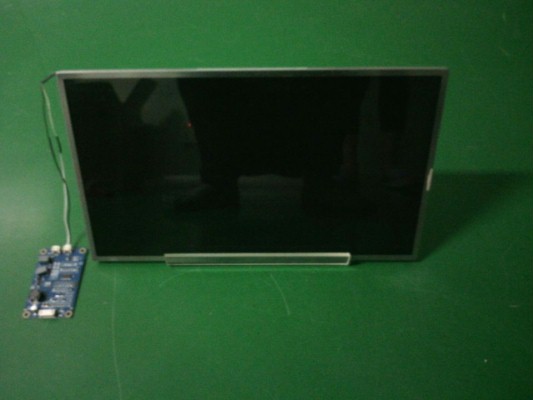

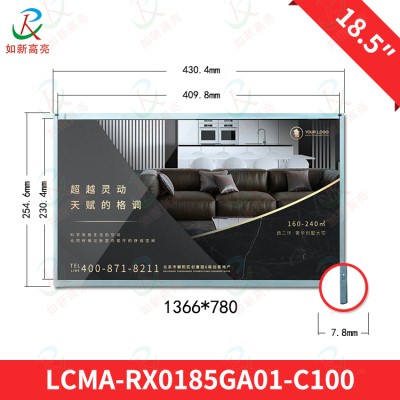

Specification

Structure features

Pixels:1366(RGB)×768 (SXGA)

Aspect ratio:16:9

Pixel Arrangement: RGB Vertical Stripe

Pixel Pitch: 0.100×0.300mm

Surface treatment: Anti-glare ,Hard coating (3H)

Display area: 409.8×230.4 mm

Viewing area: 413.4×234.0mm

Appearance size:430.4×254.6 ×8.15mm

Other features

Display Mode:TN，Normally white，transmissive

Panel brightness:1000 cd/m2 (Typ.)

Contrast）:2000 : 1 (Typ.)

Color:16.7M (6-bit+Hi-FRC )

Color saturation: 75%

Response time: 5(Typ.)(Tr/Td) (ms)

Viewing Angle: 85/85/80/80 (Typ.)(CR≥10) (Left/Right/Up/Down)

Signal types: LVDS

Small signal class: LVDS(1 ch,8-bit)

Panel power: ≤28W (Typ./Max.)

Backlight position: Side-into light sources

Backlight type:WLED

Backlit life: 60K (Typ.) (Hrs)

Working temperature：0°C～50°C

Storage temperature：-20°C～60 °C

Specification

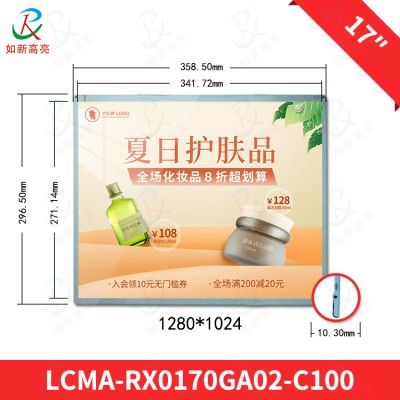

Model No.: RX170-C10-JSQ
Description: 17"TFT LCD, LED Backlight, 1000 nits, SXGA
Backlight Mode: Side-in LED Backlight
Display Area: 341.6 x 274mm
Brightness: 1000 cd/㎡
Resolution: 1024(RGB) x768 (SXGA)
Display Scale: 4:3
Contrast Ratio: 1000：1
Pixel Pitch: 0.264(H)×0.264(V) mm
Viewing Angle: 160o（H）/160o(V)
Display Colors: 16.7M (6-bit + HIFRC)
Response Time: 7 (Typ.) (Tr/Td) (ms)
Operation temperature: -20oC~70oC
Interface: LVDS
Power Consumption: 25W
Input Voltage For Panel: 5.0V (Tpy.)
LED Driving Board: DC 12V
Control Board: □2621V2.0 □2668V1.0 □2261V1.0-A
Dimensions: 358.5x296.5x15.8mm (W x H x D)
Weight: 1.99kg (Net)

Optional
□Temperature control  □ auto-dimming
Ordering Information
RX170-C06-JSQ : 17" \600nits \SXGA \LVDS \15W \LED B/L

RX170-C10-JSQ : 17" \1000nits \SXGA \LVDS \25W \LED B/L

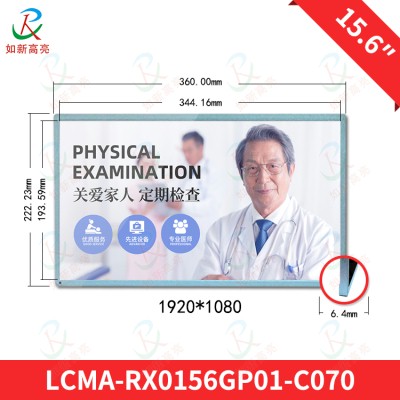

Structure Feature
Pixels: 1920(RGB)×1080 (SXGA)
Aspect ratio:16:9(W:H)
Pixel arrangement: RGB Vertical Stripe
Pixel pitch: 0.5975×0.17925mm (W*H)
Display area: 344.16×193.59 mm (W*H)
Viewing area: 347.46×196.94mm (W*H)
Appearance size: 359.7×209.7 ×8.0mm (W*H*D)

Other features
Display Mode:TN，Normally  white Transmassive
Panel brightness:1000 cd/m2 (Typ.)
Contrast: 1000 : 1 (Typ.)
Display color: 262K(6-bit)
Color saturation:75%
Response time: 8(Typ.)(Tr/Td) (ms)
Viewing Angle: 85/85/80/80 (Typ.)(CR≥10) (left/right/up/down)
Signal types:LVDS
Small signal class:LVDS(1 ch,8-bit)
Panel power: ≤15W (Typ./Max.)
Backlight position: Side-into backlight source
Backlight type:WLED
Backlit life）:60K (Typ.) (Hrs)
Working temperature：0°C～50°C
Storage temperature：-20°C～60 °C

Specification:

Model size: 47inch

Model No：LD470WUB-SCA1

Resolution：1920*1080

Luminance：1500cd/m2

Power consumption：300W

Display Scale: 16:9

Contrast ratio：1500：1

Dimensions：1068.0*613.2*54.7mm(W*H*D)

Display area：1039.68*584.8mm(W*H)

Active area：1046.0*519.2mm(W*H)

Viewing angle：89/89/89/89

Operation temperature：0oC-50oC

Response time：6ms

Display colors：16.7M

Interface：LVDS

Backlight mode： Direct type LED Backlight

Specifications

Model No: RX400-L03W

Model size: 40 inch

Description: 40"TFT LCD, LED Backlight, 1500 nits, FHD

Backlight Mode: Direct type LED Backlight

Display Area: 885.6 x 498.15㎜(W*H)

Brightness: 1500 cd/㎡

Resolution: 1920(RGB) x1080 (FHD)

Display Scale: 16:9

Contrast Ratio: 1000：1

Pixel Pitch: 0.46125(H)×0.46125(V)(㎜)

Viewing Angle: 178o（H）/178o(V)

Display Colors: 1.07B (10-bit)

Response Time: 6(Typ.)(G to G) (ms)

Operation temperature: 0oC~50oC

Interface: LVDS

Power Consumption: 360W

Input Voltage for Panel: 12.0V (Tpy.)

LED Driving Board: DC 24V

Control Board: □6M16V2.0－D  □2662V2.0   □HD12-1080P

OSU Menu: Brightness, Contrast, H/V Position, Color, Phase, Clock….

Dimensions: 911.7x524.2x58.3 (W x H x D)mm

Weight: 11.0kg (Net)

Optional: □ Temperature control □ Auto-dimming

Specification:

Model No: RX260-L03W

Model size: 26 inch

Description: 26"TFT LCD, LED Backlight, 1500 nits, WXGA

Backlight Mode: Direct type LED Backlight

Display Area: 580.8 x 328.8㎜

Brightness: 1500 cd/㎡

Resolution: 1366(RGB) x768 (WXGA)

Display Scale: 16:9

Contrast Ratio: 3000：1

Pixel Pitch: 0.4215(H)×0.4215(V)(㎜)

Viewing Angle: 178o（H）/178o(V)

Display Colors: 16.7M (6-bit + HIFRC)

Response Time: 8 (Typ.)(G to G) (ms)

Operation temperature: 0oC~50oC

Interface: LVDS

Power Consumption: 100W

Input Voltage for Panel: 12.0V (Tpy.)

LED Driving Board: DC 24V

Control Board: □6M16V2.0－D  □2662V2.0

OSU Menu: Brightness, Contrast, H/V Position, Color, Phase, Clock….

Dimensions: 626.0x373.0x47.1 (W x H x D)mm

Weight: 4.1kg (Net)

Optional: □ Temperature control  □ Auto-dimming

Key features

Customize: Yes

Brand:  Chimei

Model No.：RX-T645HW02

Model type：LCD screen

Model size：65 inch

Display color: 16.7m

Brightness：2500nit

Contrast: 5000:1

Resolution：1920*1080

Pixel pitch：1.200*1.200mm

Dot pitch：1.200*1.200（mm）

Response time: 5ms

Viewing angle：178°/178°

Advantages:

Four core technologies:

1. Smart sensors.

2. Warm and cold resistance.

3. Polar Blue-ray.

4. Safe chip.

Five functional properties:

1. Intelligent environment sensitive: Adjusts automatically according to the ambient light to display images best.

2. The highest and lowest temperature protection: Under the lowest temperature, it can automatically adjust to avoid being frostbitten. Under high temperature, when it is beyond normal operating range, the backlight can automatically shut down until temperature comes back to normal to achieve the function of protection.

3. Preheating: It can normally start up to work at low temperatures.

4. High efficiency blue LED backlight: Ultra low power consumption of blue-ray technology brings high-performance and stable working condition.

5. Low voltage constant current drive system: Voltage driving circuit design brings excellent safety performance.

Eight product ascendant characteristic:

1. Trend green products

2. Ultra-low energy saving applications.

3. New color saturation display.

4. High-speed response time.

5. Double-long service life.

6. The safe low-voltage drive.

7. The stability seismic performance.

8. Ultra-thin and light structure

Specification:

Model size: 55inch

Model No.: LTI550HN02

Model type: LCD display

Customized: Yes

Panel brightness: 1700 cd/m2

Resolution: 1920*1080

Display Scale: 16:9

Contrast: 5000: 1

Display color: 16.7M

Appearance size: 1215.5*686.3*64.1mm (W*H*D)

Display area: 1209.6*680.4mm (W*H)

Response time: 8ms

Viewing angle: 89/89/89/89 (left/right/up/down)

Power consumption: 445W

Backlight position: Direct type LED backlight

Backlight life: 80-100K (Typ.) (hrs)

Working temperature：0°C～50°C

Key features

1. Sunlight readable

2. LED backlight

3. High shock & Vibration resistance

4. Low power consumption

5. High uniformity

6. High contrast

7. Wide viewing angle

8. Low voltage driver circuit design/equipment excellent safety performance

9. Professional driver chip images showed more clearly, the stability, the color performance is better

10. Life span:  60,000hrs

Structure features

Pixels: 1920(RGB)×1080 (SXGA)

Aspect ratio: 16:9

Pixel arrangement: RGB Vertical Stripe

Pixel pitch: 0.14225×0.42675mm(W*H)

Surface treatment: Surface matte, Hard coating (3H)

Display area: 819.36×460.89mm (W*H)

Viewing area: 828.6×469.8mm (W*H)

Appearance size: 877.0×516.8 ×55.50mm (W*H*D)

Other features

Display mode: S-PVA，Normally black, transmissive

Panel brightness: 1500 cd/m2 (Typ.)

Contrast: 3000: 1 (Typ.) (transmissive)

Display color: 16.7M/1.06B (8-bit/8-bit+Dithering)

Color saturation: 72%

Response time: 5(Typ.) (Tr/Td) (ms)

Viewing angle: 89/89/89/89(Typ.) (CR≥10) (left/right/up/down)

Signal types: LVDS

Small signal class: LVDS (2 ch,8/10-bit)

Backlight position: Direct type LED backlight

Backlight type: WLED

Backlit life: 60K (Typ.) (hrs)

Working temperature：0°C～50°C

Storage temperature：-20°C～60 °C

Application: Outdoor electronic bus station board/outdoor LCD TV/outdoor high bright LCD advertising player/high bright industry displays /digital signage

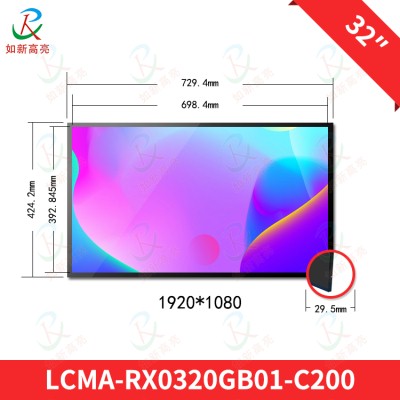

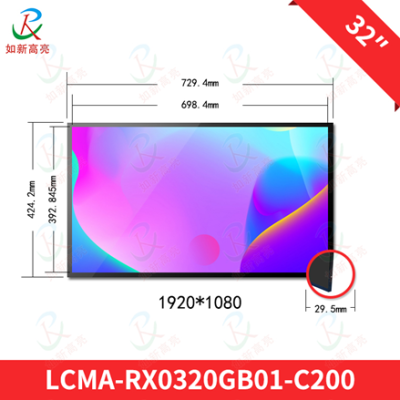

Key Features

1. Sunlight readable

2. LED backlight

3. High shock & Vibration resistance

4. Low power consumption

5. High uniformity

6. High contrast

7. Wide viewing angle

8. Low voltage driver circuit design/equipment excellent safety performance

9. Professional driver chip images showed more clearly, the stability, the color performance is better

10. Life span:  60,000hrs

Structure features

Pixels: 1920(RGB)×1080 (SXGA)

Aspect ratio: 16:9

Pixel arrangement: RGB Vertical Stripe

Pixel pitch: 0.12125×0.36375mm (W*H)

Surface treatment: Surface matte, Hard coating (3H)

Display area: 698.4×392.85mm (W*H)

Viewing area: 703.8×398.4mm (W*H)

Appearance size: 760.0×450.0×48.0mm (W*H*D)

Other features

Display mode: S-PVA，Normally black, transmissive

Panel brightness: 1500 cd/m2 (Typ.)

Contrast: 3000: 1 (Typ.) (transmissive)

Display color: 16.7M/1.06B (8-bit/8-bit+Dithering)

Color saturation: 75%

Response time: 5(Typ.)(Tr/Td) (ms)

Viewing angle: 89/89/89/89(Typ.)(CR≥10) (left/right/up/down)

Signal types: LVDS

Small signal class: LVDS (2 ch, 8-bit)

Backlight position: Direct type LED backlight

Backlight type: WLED

Backlight life: 60K (Typ.) (hrs)

Working temperature：0°C～50°C

Storage temperature：-20°C～60 °C

Application: Commercial display (outdoor LCD advertising player/outdoor electronic bus station board/outdoor LCD TV)

Key Features

1. Sunlight readable
2. LED backlight
3. High shock & Vibration resistance
4. Low power consumption
5. High uniformity
6. High contrast
7. Wide viewing angle
8. Low voltage driver circuit design/equipment excellent safety performance
9. Professional driver chip images showed more clearly, the stability, the color performance is better )
10. Life span : 60,000hrs
Structure features
Pixels: 1920(RGB)×1080 (SXGA)
Aspect ratio: 16:9
Pixel arrangement: RGB Vertical Stripe
Pixel pitch: 0.277×0.831mm (W*H)
Surface treatment: Surface matte, Hard coating (3H)
Display area: 1595.52×897.48 mm (W*H)
Viewing area: 1606.0×908.0mm (W*H)
Appearance size: 1666.0×968.0 ×60.0mm (W*H*D)

Other features
Display mode: IPS，Normally black, transmissivve
Panel brightness: 2000 cd/m2 (Typ.)
Contrast: 4000 : 1 (Typ.) (transmissive)
Display color: 1.07B/(8-bit+Hi-FRC )
Color saturation: 75%
Response time: 5(Typ.)(Tr/Td) (ms)
Viewing angle:  89/89/89/89(Typ.)(CR≥10) (left/right/up/down)
Signal types:  LVDS
Small signal class: LVDS(2 ch,10-bit)
Backlight position:  Direct type LED backlight
Backlight type: WLED
Backlit life: 60K (Typ.) (hrs)
Working temperature：0°C～50°C
Storage temperature：-20°C～60 °C
