8.0 Inch - 12.1 Inch lcd monitor

10.1 inch HD TFT lcd modules with 1280*800p resolution and 350nit luminance, for various use

Zoom
Name: 10.1 inch HD TFT lcd modules with 1280*800p resolution and 350nit luminance, for various use
Name: Shenzhen Rogin Electronics CO., LTD
Model: RX101A-04
Brief:

Rogin 10.1inch RX101A-04 HD TFT lcd modules supports 1280*800p resolution and 350nit luminance. It is in high quality and reliability, which makes it durable in use.

Details

Specification



Model number:RX101A-04

Display mode:Normally White, Transmissive

Resolution:1280*800

Contrast ratio:800: 1

Display area:216.9*135.6mm

Module Size:229.46*149.2*5mm

Interface:LVDS

Viewing angel:85;85;85;85

Viewing Direction:12 O‘clock

Backlight No.:39LED

Luminance:350nit

Response Time:10/15ms

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃

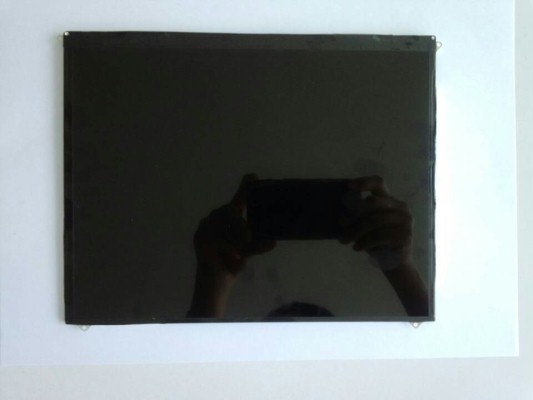

9.7 inch IPS tft LCD modules with LVDS interface, high definition and full view angel

Zoom
Name: 9.7 inch IPS tft LCD modules with LVDS interface, high definition and full view angel
Name: Shenzhen Rogin Electronics CO., LTD
Model: RX-BI097XN02
Brief:

Rogin 9.7 inch RX-BI097XN02 IPS tft LCD modules with LVDS interface supports 1024*768 resolution and 350nit luminance, The full view angel makes the image clear and vivid

Details

Specification



Model number:RX-BI097XN02(IPS)

Display mode:Normally Black, Transmissive

Resolution:1024*768

Dot Pitch:0.192*0.192mm

Contrast ratio:800:1

Display area:196.6*147.4mm

Module Size:213.9*158.4*5.7mm

Interface:LVDS

Viewing angel:89/89/89/89

Viewing Direction:Full view

Backlight No.:36LED

Luminance:350nit

Response Time:25ms

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃





8.0 inch color lcd module with EK9713 driving IC,175.9*98.8mm display area

Zoom
Name: 8.0 inch color lcd module with EK9713 driving IC,175.9*98.8mm display area
Name: Shenzhen Rogin Electronics CO., LTD
Model: RX080A-03
Brief:

8.0 inch lcd module has 36 LED backlight, 800*480pixels resolution and 192.8*116.9*6.4mm outline size. It is widely applied in the area of digital products.

Details

Product basic attribute

Model number:RX080A-03

LCD Brand:Innolux

Drive IC:EK9713

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:800*480pixels

Dot Pitch:0.0642(H) *0.1790(V)

Contrast ratio:500:1

Display area:175.9*98.8mm

Module Size:192.8*116.9*6.4mm

Interface:Plug

Connection Type:Series 3 and 3

Pin No.:50PIN

Viewing angel:70;70;50;70

Viewing Direction:12 o'clock

Backlight No.:3LED

Luminance:450nits

Driving voltage/Current:240MA; 9.0V

Response Time:10/15

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃


More>>
