2.0 Inch - 3.5 Inch lcd monitor

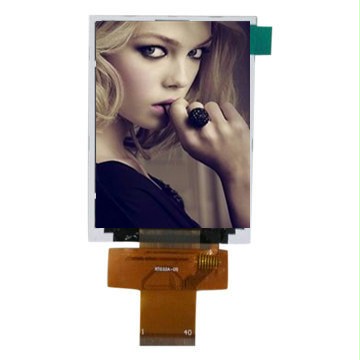

3.5 inch TFT high brightness lcd display,supports 320x480 resolution,LVDS interface, 40pin, can be for outdoor use

Zoom
Name: 3.5 inch TFT high brightness lcd display,supports 320x480 resolution,LVDS interface, 40pin, can be for outdoor use
Name: 深圳市如新电子有限公司
Model: RX035H-20
Brief:

Rogin 3.5 inch TFT high brightness 450nit lcd display,supports 320x480 resolution,LVDS interface, 40pin, can be for outdoor use. CTP and RTP are avaliable

Details

Specification

Model number:RX035h-20

LCD Brand:HSD

Drive IC:ILI9488

Display mode:Normally White, Transmissive

Display colors:16.7 M

Resolution:320*480

Contrast ratio:500:1

Display area:48.96*73.44

Module Size:56.54*85.50*2.45

Interface:MCU

Connection Type: Sold type

Pin No.:40PIN

Viewing angel:60/60/70/70

Viewing Direction:12 O'clock

Backlight No.:6LEDS

Luminance:450nit

Response Time:10ms

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃

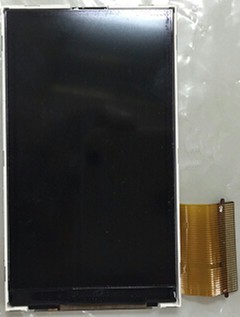

3.5 inch TFT high brightness lcd display,supports 320x480 resolution,RGB interface, 40pin, can be for outdoor use

Zoom
Name: 3.5 inch TFT high brightness lcd display,supports 320x480 resolution,RGB interface, 40pin, can be for outdoor use
Name: 深圳市如新电子有限公司
Model: RX035T-12
Brief:

Rogin 3.5 inch TFT high brightness lcd display,supports 320x480 resolution,RGB interface, 24bit, 40pin, brightness is up to 700nit ,can be for outdoor use. View angle is 70/70/70/70 and working temperature is -20~70 . It is good in use and favorable in price

Details

规格参数

产品型号:RX035T-12

玻璃品牌: TIAANMA

显示模式:TFT负显,透射式

显示颜色:16.7M

分辨率:320*240

点距:0.219(H) *0.219(V)mm

对比度:500: 1

显示区域:70.08*52.56mm

外观尺寸:76.9*63.9*3.0mm

接口类型:RGB 24bit

可视角度:70/70/70/70

可视方向:12

背光灯数:8LED

面板亮度:700nit

响应时间:  20/30ms

工作温度:-20℃- +70℃

储存温度:-30℃- +80℃

2.4 inch transflective TFT lcd display with full view angle, supports 240x320 resolution, sunlight readable,can used for phone

Zoom
Name: 2.4 inch transflective TFT lcd display with full view angle, supports 240x320 resolution, sunlight readable,can used for phone
Name: 深圳市如新电子有限公司
Model: RX024C-14
Brief:

Rogin 2.4 inch transflective TFT lcd dsiplay with full view angle, supports 240x320 resolution, 450:1 contrast ratio, sunligjt readable and working temperature is -20~70,The quality is good and the price is workable.

Details

Specification

Model number:RX024C-14

Display mode:Normally White, Transflective

Display colors:262k

Resolution:240*320

Dot Pitch:0.153(H) *0.153V)mm

Contrast ratio:450: 1

Active area:36.72*48.96mm

Module Size:42.92*60.26*2.2mm

Interface:RGB 24bit

Viewing angel:All

Viewing Direction:12 O'clcok

Luminance:250nit

Response Time: 25/35ms

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃

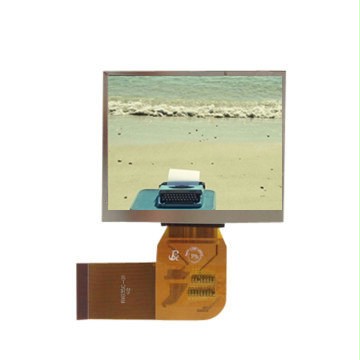

3.5 inch full color tft lcd modules with 320x240, MCU interface, 200nit, for learning machine use

Zoom
Name: 3.5 inch full color tft lcd modules with 320x240, MCU interface, 200nit, for learning machine use
Name: 深圳市如新电子有限公司
Model: RX035C-0100
Brief:

Rogin 3.5 inch full color tft lcd modules is designed with 320x240, MCU interface. Supports 262k display color and 200nit brightness, for learning machine use

Details

odel number:RX035C-0100

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:320*240

Contrast ratio:300:1

Display area:70.08*52.56mm

Module Size:77.6*64.6*3.1mm

Interface:MCU 18bits/SPI

Connection Type:splice type

Pin No.:50PIN

Viewing angel:25/45/45/45

Viewing Direction:6 O'clock

Backlight No.:6 LED

Luminance:200cd/㎡

Driving voltage/Current:9.6V/40mA

Response Time:35ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

3.2 inch full color TFT lcd modules with 320x240,RGB interface, 500:1 contrast ratio

Zoom
Name: 3.2 inch full color TFT lcd modules with 320x240,RGB interface, 500:1 contrast ratio
Name: 深圳市如新电子有限公司
Model: RX032A-04
Brief:

Rogin 3.2 inch full color TFT lcd modules is designed with 320x240,RGB interface, 262K display color,500:1 contrast ratio and operating temperature is -20℃- +70℃ It is widely used on learning machine

Details

Specification



Model number:RX032A-04

LCD Brand:HSD

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:240*320

Dot Pitch:0.203(H) *0.203(V)mm

Contrast ratio:500: 1

Display area:48.6*64.8mm

Module Size:57.54*79.2*3.4mm

Interface: RGB interface

Connection Type:Plug

Pin No.:40PIN

Viewing angel:45;45;45;20

Viewing Direction:12 O'clock

Response Time:12ms

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃

3.2 inch tft lcd modules with 240x320 resolution,37 pin, Display area is 48.6*64.8mm, for industry use

Zoom
Name: 3.2 inch tft lcd modules with 240x320 resolution,37 pin, Display area is 48.6*64.8mm, for industry use
Name: 深圳市如新电子有限公司
Model: RX032C-0401
Brief:

Rogin 3.2 inch tft lcd modules has 240x320 resolution,37 pin, 262k display color. Display area is 48.6*64.8mm, for industry use

Details

Specification



Model number:RX032C-0401

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:240*320p

Dot Pitch:0.2052(H) *0.2052(V)mm

Display area:48.6*64.8mm

Module Size:55*77.2*2.8mm

Interface:Solder

Pin No.:38PIN

Viewing Direction:12

Driving voltage/Current:75MA; 3.2V

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃



2.7 inch tft lcd modules with 960x240 resolution, RGB 8 bit,AA is 33.06x58.8mm, for handheld devices use

Zoom
Name: 2.7 inch tft lcd modules with 960x240 resolution, RGB 8 bit,AA is 33.06x58.8mm, for handheld devices use
Name: 深圳市如新电子有限公司
Model: RX027C-01
Brief:

Rogin 2.7 inch tft lcd modules is designed with 960x240 resolution, RGB 8 bit, Dot Pitch is 0.06125(H) *0.13775(V)mm and AA is 33.06x58.8mm, for handheld devices use

Details

Specification



Model number:RX027C-01

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:960x240

Dot Pitch:0.06125(H) *0.13775(V)mm

Contrast ratio:400: 1

Active area:33.06x58.8mm

Module Size:39.1*67.5*2.4mm

Interface:RGB 8bit

Viewing angel:30/30/30/30

Viewing Direction:12 O'clcok

Luminance:220nit

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃




2.36 inch tft lcd modules with 480x234resolution, MCU interface, horizontal display, for instruments use.

Zoom
Name: 2.36 inch tft lcd modules with 480x234resolution, MCU interface, horizontal display, for instruments use.
Name: 深圳市如新电子有限公司
Model: RX024A-03
Brief:

Rogin 2.36 inch TFT lcd modules is designed with 480x234resolution, MCU interface, horizontal display type, durable in use and fine in quality. widely used on instruments

Details

Specification



Model number:RX024A-03

LCD Brand:CPT

Drive IC:OTA5182

Display mode: Normally White, Transmissive

Display colors:262K

Resolution:480*234

Dot Pitch:0.3(H)*0.1525(V)

Contrast ratio:400:1

Display area:48.0(W)*35.685(V)mm

Module Size:55.2(W)*47.55(H)*2.90(D)mm

Interface:MCU 8 bit

Connection Type:connection

Pin No.:40pin

Viewing angel:50/65/65/65

Viewing Direction:12 o'clock

Backlight No.:4 LED

Luminance:200 cd/㎡

Driving voltage/Current:3.2V/60mA

Response Time:30ms

Operating temperature:-20~+70

Stroage temperature:-30~+80

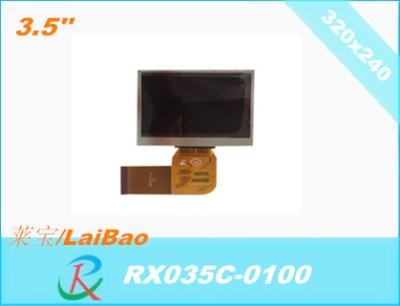

3.5-inch TFT LCD module, 320(RGB)*240, industrial class ,touch panel optional

Zoom
Name: 3.5-inch TFT LCD module, 320(RGB)*240, industrial class ,touch panel optional
Name: 深圳市如新电子有限公司
Model: RX035C-0100
Brief:

3.5-inch TFT LCD module with touch panel optional can be customized and applied in the industrial control field, as well as be used on the learning machine. Its outline size is 77.6*64.6*3.1mm and display area is 70.08*52.56mm

Details

Product basic attribute

Model number:RX035C-0100

LCD Brand:Laibao

Drive IC:SSD2119

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:320*240

Contrast ratio:300:1

Display area:70.08*52.56mm

Module Size:77.6*64.6*3.1mm

Interface:MCU 18bits/SPI

Connection Type:splice type

Pin No.:50PIN

Viewing angel:25/45/45/45

Viewing Direction:6 O'clock

Backlight No.:6 LED

Luminance:200cd/㎡

Driving voltage/Current:9.6V/40mA

Response Time:35ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

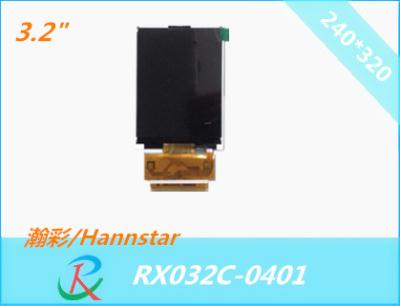

3.2 inch lcd module with 240*320 resolution,ILI9341drive IC,soldering interface

Zoom
Name: 3.2 inch lcd module with 240*320 resolution,ILI9341drive IC,soldering interface
Name: 深圳市如新电子有限公司
Model: RX032C-0401
Brief:

3.2 inch soldering interface lcd module has LED backlight and 3.2V driving power supply.It can be customized and flexibly used in industry field.The price of this module is acceptable and quality is reliable.

Details

Product basic attribute


Model number:RX032C-0401

LCD Brand:HSD

Drive IC:ILI9341V

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:240*320

Dot Pitch:0.2052(H) *0.2052(V)

Contrast ratio:500:1

Display area:48.6*64.8mm

Module Size:55*77.2*2.8

Interface:MCU 16bits

Connection Type:soldering type

Pin No.:38PIN

Viewing angel:45/45/45/20

Viewing Direction:12 O'clock

Backlight No.:5 LED

Luminance:160cd/㎡

Driving voltage/Current:3.2V/75mA

Response Time:16ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

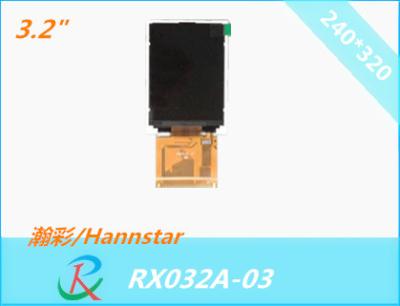

3.2 inch tft lcd module with lLED backlight, customized shape and size for industry use

Zoom
Name: 3.2 inch tft lcd module with lLED backlight, customized shape and size for industry use
Name: 深圳市如新电子有限公司
Model: RX032A-03
Brief:

3.2 inch tft lcd module is suitable for customized shape for industry use. This module is designed with 240*320pixels resolution and 48.6*64.8mm display area. Quality promised.

Details

Product basic attribute

Model number:RX032A-03

LCD Brand:HSD

Drive IC:ILI9341V

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:240*320

Dot Pitch:0.203(H) *0.203(V)

Contrast ratio:500:1

Display area:48.6*64.8mm

Module Size:57.54*79.2*3.4mm

Interface:MCU 16bits

Connection Type:soldering type

Pin No.:37PIN

Viewing angel:45/45/45/20

Viewing Direction:12 O'clock

Backlight No.:6LED

Luminance:160cd/㎡

Driving voltage/Current:3.2V/90mA

Response Time:16ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

2.8 inch tft lcd module with 240*400pixels resolution and 36.72*61.20mm display area, instrument use.

Zoom
Name: 2.8 inch tft lcd module with 240*400pixels resolution and 36.72*61.20mm display area, instrument use.
Name: 深圳市如新电子有限公司
Model: RX028A-03
Brief:

2.8 inch lcd module is widely used in the field of instrument, and it is designed with OTM4001 driving IC. Its module size is 43.70*73.1*2.4mm and its display area is 36.72*61.20mm.

Details

Product basic attribute

Model number:RX028A-03

LCD Brand:HSD

Drive IC:OTM4001

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:240*400

Dot Pitch:0.18(H) *0.18(V)

Contrast ratio:300: 1

Display area:36.72*61.20mm

Module Size:43.70*73.1*2.4mm

Interface:MCU 18bits

Connection Type:soldering type

Pin No.:40PIN

Viewing angel:60/55/50/50

Viewing Direction:12 O'clock

Backlight No.:4 LED

Luminance:160nits

Driving voltage/Current:3.2V/60mA

Response Time:25ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

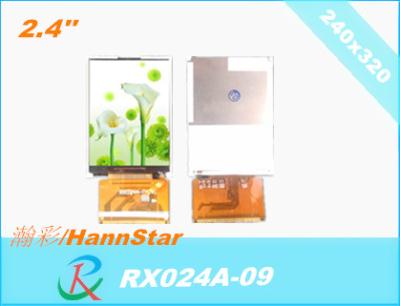

2.4 inch tft lcd module with 240*320 pixels resolution, LED backlight,37pin

Zoom
Name: 2.4 inch tft lcd module with 240*320 pixels resolution, LED backlight,37pin
Name: 深圳市如新电子有限公司
Model: RX024A-09
Brief:

2.4 inch tft lcd module is widely applied in the industry field. This module has 240*320 pixels resolution and 37.62*48.96mm display area. It has 3LED backlight and 12 viewing angel.

Details

Product basic attribute

Model number:RX024A-09

LCD Brand:HSD

Drive IC:ILI9341V

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:240*320pixels

Display area:36.72*48.96mm

Module Size:42.72*60.26*2.2mm

Pin No.:37PIN

Viewing Direction:12 o'lock

Backlight No.:4LED

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃





3.5 inch color tft lcd module with 48.96*73.44mm display area and MCU 16bits interface

Zoom
Name: 3.5 inch color tft lcd module with 48.96*73.44mm display area and MCU 16bits interface
Name: 深圳市如新电子有限公司
Model: RX035A-03
Brief:

3.5 inch color tft lcd module is mostly used on handheld devices. It owns the characteristics of 320*480pixels resolution and 48.96*73.44mm display area . It is very popular in the current market

Details

Product basic attribute

Model number:RX035A-03

LCD Brand:HSD

Drive IC:ILI9488

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:320*480

Dot Pitch:0.153*0.153

Contrast ratio:500:1

Display area:48.96*73.44mm

Module Size:56.54*85.50*2.45mm

Interface:MCU 16bits

Connection Type:splice type

Pin No.:39PIN

Viewing angel:70/70/70/60

Viewing Direction:12 O'clock

Backlight No.:6 LED

Luminance:200cd/㎡

Driving voltage/Current:19.2V/15mA

Response Time:16ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃







2.8 inch color tft lcd module with240*320pixels resolution,LED backlight,instrument use

Zoom
Name: 2.8 inch color tft lcd module with240*320pixels resolution,LED backlight,instrument use
Name: 深圳市如新电子有限公司
Model: RX028A-0801
Brief:

2.8 inch tft lcd module is widey used on instrument. It owns features of 240*320pixels resolution , 43.2*57.6mm display area and 3.2V driving power supplier. It is in satisfactory quality.

Details

Product basic attribute


Model number:RX028A-0801

LCD Brand:HSD

Drive IC:ILI9341V

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:240*320pixels

Dot Pitch:0.180(H) x 0.180(V)

Contrast ratio:500: 1

Display area:43.2*57.6mm

Module Size:50.*69.2*2.39mm

Pin No.:37PIN

Viewing angel:45;45;50;20

Viewing Direction:12 o'clock

Backlight No.:24LED

Response Time:12ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

2.0 inch tft lcd module with LED backlight and 31.68*39.65mm display area, competitive price.

Zoom
Name: 2.0 inch tft lcd module with LED backlight and 31.68*39.65mm display area, competitive price.
Name: 深圳市如新电子有限公司
Model: RX020A-01
Brief:

2.0 inch tft lcd module is widely use in industry area. Its outline size is 37.68*51.30*2.3mm and its driving voltage is 3.2V. It is in fine quality and competitive price.

Details

Product basic attribute


Model number:RX020A-01

LCD Brand:HSD

Drive IC:ILI9225G

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:176*220

Dot Pitch:0.180(H) x 0.180(V)

Contrast ratio:500 :1

Display area:31.68*39.65mm

Module Size:37.68*51.30*2.3mm

Interface:MCU 16bits

Connection Type:soldering type
Pin No.:36PIN

Viewing angel:45/45/45/20

Viewing Direction:12 O'clock

Backlight No.:3 LED

Luminance:160cd/㎡

Driving voltage/Current:3.2V/45mA

Response Time:8ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

2.2 inch tft lcd module ,176*220 resolution with 31.68*39.65mm display area and 3 LED

Zoom
Name: 2.2 inch tft lcd module ,176*220 resolution with 31.68*39.65mm display area and 3 LED
Name: 深圳市如新电子有限公司
Model: RX022A-03
Brief:

2.2 inch lcd module has 176*220(rgb) resolution and 31.38*39.65mm display area with 3 LED. Its module size is 40.2(W)*55.6(H)*2.35(D)mm and it is widely used in industry area.

Details



Product basic attribute


Model number:RX022A-03

LCD Brand:HSD

Drive IC:ILI9225G

Display mode:Normally White, Transmissive

Display colors:262K

Resolution:176*220

Dot Pitch(H*V):0.198*0.198mm

Contrast ratio:500:1

Display area:34.85*43.56mm

Module Size(W*H*D):40.2*55.6*2.35mm

Interface:80808bit

Connection Type:splice type

Pin No.:24PIN

Viewing angel:12 O'clock

Viewing Direction:12

Backlight No.:4LED

Luminance:160cd/㎡

Driving voltage/Current:3.2V/60mA

Response Time:8ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃








3.5 inch color lcd module 320*240 MCU/SPI interface

Zoom
Name: 3.5 inch color lcd module 320*240 MCU/SPI interface
Name: 深圳市如新电子有限公司
Model: RX035C-01
Brief:

3.5 inch lcd panel widely used in industry field , digital field and other mini display applications

Details

Product basic attributes

Model number: RX035C-01
Drive IC: SSD2119

Display mode: Normally White, Transmissive

Display colors: 16.7M

Resolution: 320(RGB)*240

Dot Pitch: 0.219*0.219

Contrast ratio: 600:1

Display area: 70.08(H)*52.56(V)mm

Module Size: 77.6(W)*64.4(H)*3.1(D)mm
Interface: MCU6/8/9/16/18/SPI

Connection Type: Plug Type

Pin No.: 50Pin

Viewing Direction: 12 O'clock

Backlight No.: 6LED

Luminance: 200nits

Driving voltage/Current: 9.6V/25mA

Response Time: 20ms

Operating temperature:-20°C ~ +70°C

Storage temperature:-30°C ~ +80°C

3.5 inch industrial grade tft monitor 320*240

Zoom
Name: 3.5 inch industrial grade tft monitor 320*240
Name: 深圳市如新电子有限公司
Model: RX035M-02
Brief:

3.5inch lcd display mainly used in handheld devices, interphone,Visual doorbell ect.

Details

Product basic attributes



Model number: RX035M-02

LCD Brand: TianMa

Drive IC: HX8238D

Display mode: Normally White, Transmissive

Display colors: 16.7M

Resolution: 320(RGB)*240

Dot Pitch: 0.219*0.219mm

Contrast ratio: 350:1

Display area: 70.08(H)*52.56(V)mm

Module Size: 76.9(W)*63.9(H)*3.2(D)mm
Interface: RGB 24Bits

Connection Type: Plug type

Pin No.: 54Pin

Viewing angel: 40/60/60/60

Viewing Direction: 12 O'CLOCK

Backlight No.: 6 LED

Luminance: 200nits

Driving voltage/Current:19.2V/20mA

Response Time: 25ms

Operating temperature:-20°C ~ +70°C

Storage temperature:-30°C ~ +80°C

2.4 inch tft| 480*234 HD| rgb 8 bit| LCM

Zoom
Name: 2.4 inch tft| 480*234 HD| rgb 8 bit| LCM
Name: 深圳市如新电子有限公司
Model: RX024A-03
Brief:

2.4 inch tft lcd made in CPT lcd ,drive by OTA5182, and it has high pixels

reach to 480*234. This module widely used in handling equipments and POS

Details

Product basic attributes

Model number: RX024A-03

LCD Brand: CPT

Drive IC: OTA5182

Display mode: Normally White, Transmissive

Display colors: 262K

Resolution: 480*234

Dot Pitch: 0.3(H)*0.1525(V)

Contrast ratio: 400:1

Display area: 48.0(W)*35.685(V)mm

Module Size: 55.2(W)*47.55(H)*2.90(D)mm

Interface: MCU 8 bit

Connection Type: connection

Pin No.: 40pin

Viewing angel: 50/65/65/65

Viewing Direction: 12 o'clock

Backlight No.: 4 LED

Luminance: 200 cd/㎡

Driving voltage/Current: 3.2V/60mA

Response Time: 30ms

Operating temperature: -20°C~+70°C

Stroage temperature: -30°C~+80°C









More>>

News Comment / Latest Comments

Quick Comment / Quick Comments

TITLE:
NAME
CONTENT
(*)

Products

ContactUs

Tel: +86-13538144893

       +86-0755-29850743

Fax: +86-0755-29113212

COntact  person: Emma Gao(13538144893)

QQ:2744485615

E-mail: lcd.emma@rogin.com.cn

Add: Building16th 8thFloor, 8th Industrial Area, Shajing Republican Street, Baoan District, Shenzhen City
