4.3 Inch - 7.0 Inch lcd monitor

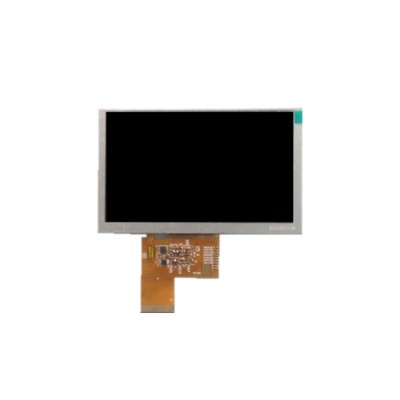

5.0 inch TFT LCD modules with 800*480 high resolution, RGB 24 bit interface, for ca display use.

Zoom
Name: 5.0 inch TFT LCD modules with 800*480 high resolution, RGB 24 bit interface, for ca display use.
Name: 深圳市如新电子有限公司
Model: RX050A-08
Brief:

Rogin 5.0 inch TFT LCD modules has 800*480 high resolution, RGB 24 bit interface,it is mostly used in car navigation field, we also have higher luminance, such as 500nit and 900nit.

Details

Product basic attributes

Model number: RX050A-08

LCD Brand: Innolux

Drive IC: ILI6122+ILI5960

Display mode: Normally White, Transmissive

Display colors: 16.7M

Resolution: 800*480

Dot Pitch: 0.135(W)*0.135(H)mm

Contrast ratio: 700:1

Display area: 108(W)*64.8(H)mm

Module Size: 120.7(W)*75.8(H)*3.1(D)mm

Interface: RGB 24 bit

Connection Type: Connection

Pin No.: 40pin

Viewing angel: 70/70/50/70

Viewing Direction: 6 O'CLOCK

Backlight No.: 12 LED

Luminance: 250nit

Driving voltage/Current: 19.8V/40mA

Response Time: 20ms

Operating temperature:-20°C~ + 70°C

Storage temperature:-30°C~ + 80°C

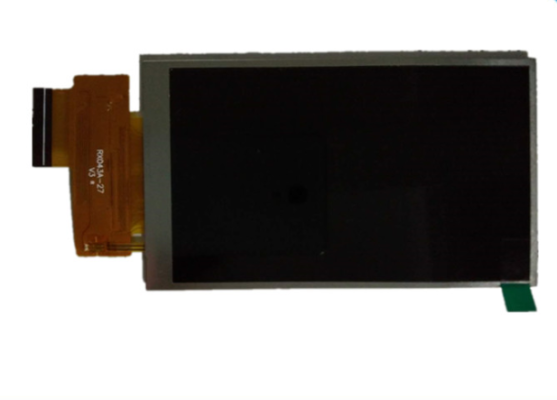

4.3inch HD tft lcd module with 480x800, RGB interface,400nit, for communication devices use

Zoom
Name: 4.3inch HD tft lcd module with 480x800, RGB interface,400nit, for communication devices use
Name: 深圳市如新电子有限公司
Model: RX043A-27
Brief:

Shenzhen Rogin 4.3inch HD tft lcd module, supports 480x800 resolution, 800:1 contrast ratio, RGB interface, 400nit. The Viewing angel is 80/80/80/80 and Response Time is 16/20ms. It can be added with RTP and CTP. It is widely used on the conmminication devices

Details

Specification

Model number: RX043A-27

Display mode: Normally White, Transmissive

Display colors: 16.7M

Resolution: 480(RGB)*800

Dot Pitch: 0.108(H) *0.108(V)mm

Contrast ratio: 800:1

Display area: 56.16*93.60mm

Module Size: 62.5*105.55*2.1mm
Interface: RGB

Connection Type: Plug Type

Pin No.: 42Pin

Viewing angel: 80/80/80/80

Viewing Direction: 6 O'clock

Luminance:  400nit

Response Time:  16/20ms

Operating temperature:-20°C ~ +70°C

Stroage temperature:-30°C ~ +80°C

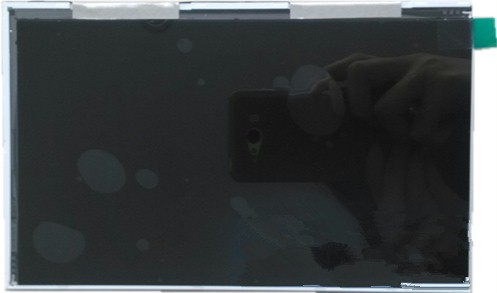

7 inch high definition TFT lcd display with 1024x600, LVDS interface, 40pin, 300nit.

Zoom
Name: 7 inch high definition TFT lcd display with 1024x600, LVDS interface, 40pin, 300nit.
Name: 深圳市如新电子有限公司
Model: RX-HE070NA-13B
Brief:

Rogin 7 inch high definition TFT lcd display is designed with 1024x600, LVDS interface, supports 16.7 M display color and 700:1 contrast ratio, which is widely used on industrial and medicial instruments

Details

Specification

Model number:RX-HE070NA-13B

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:1024X600

Dot Pitch:0.05X0.15mm

Contrast ratio:700: 1

Display area:153.6x90mm

Module Size:165.7x105.40*3.0mm

Interface:LVDS

Pin No.:40PIN

Viewing angel:75/75/50/75

Viewing Direction:6 O'clock

Luminance:300nit

Response Time:10/15ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

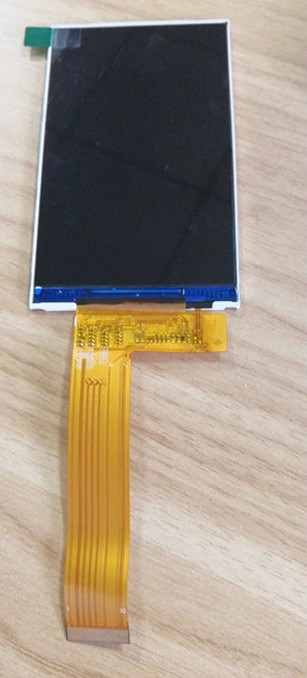

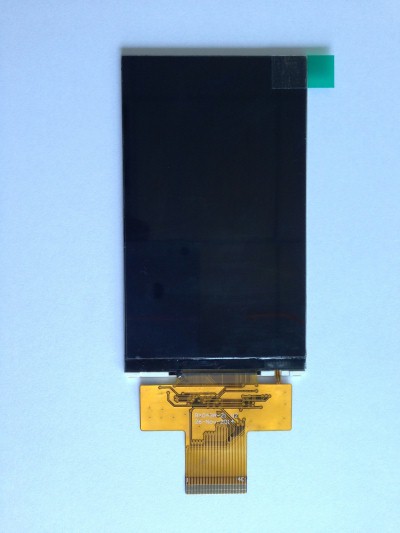

4.3 inch IPS LCD module with 480*800p,tft lcd , high brightness LCD ,long lifespan,widely used on digital product

Zoom
Name: 4.3 inch IPS LCD module with 480*800p,tft lcd , high brightness LCD ,long lifespan,widely used on digital product
Name: 深圳市如新电子有限公司
Model: KD043FM-2
Brief:

Rogin 4.3 inch tft lcd module,high brightness LCD,supports 480*800p and 500:1 conrast ratio.LED backlight and full wiew angle. Active Area is 56.16*93.6mm and 26. Operating temperature range is -20----70 °C, Storage Temperature range is-30----80 °C

Details

Detailed descriptions

1. LCD name: 4.3 inch 480*800, HX8369A, 8/9/16/18 bit MCU, 8/16/18/24 bit RGB, 3/4 wire SPI interface, full viewing angle, high brightness IPS LCD

2. Part No.: KD043FM-2

3. Compatible part No.: KD043FM-1

4. Size.: 4.3 inch

5. With touch panel or not: No

6. Display type: IPS

7. Display colors: 65K/262K/16.7M

8. Resolution (pixels): 480(RGB)*800

9. Pixel pitch: 0.051(H)*0.153(V)

10. Viewing direction: ALL (160O)

11. Controller IC: HX8369A

12. Display mode: Transmissive

 Normally black

13. Overall size: 62.66*105.95*2.2mm

14. Viewing area: 57.76*95.2mm

15. Active Area: 56.16*93.6mm

16. Luminance: 350cd/m2

17. Contrast: 500

18. Interface type: 8/9/16/18 bit MCU

 8/16/18/24 bit RGB

3/4 wire SPI

19. Pin NO.: 50pins

20. Pin pitch: 0.5mm

21. Connecting type: FPC Socket

22. Input voltage: 3.3V

23. Backlight type and color: LED backlight/white

24. Backlight: 8 LED in series

           Vled =25.6V, Iled=20mA

25. Life span: 100000h

26. Operating temperature range: -20----70 °C

27. Storage Temperature range: -30----80 °C

28. Certification of registration: ISO9001:2008

4.3inch TFT lcd display with 480x272 resolution, 160 nit, 500:1 contrast ratio, for vehicle use

Zoom
Name: 4.3inch TFT lcd display with 480x272 resolution, 160 nit, 500:1 contrast ratio, for vehicle use
Name: 深圳市如新电子有限公司
Model: RX043A-0802
Brief:

Rogin 4.3 inch TFT lcd display with 480x272 resolution, has 160 nit brightness, 500:1 contrast ratio, display area is 95.04*53.86mm, It is in good quliaty anf favorable price , widely used on vehicle display.

Details

Specification



Model number:RX043A-0802

Drive IC:ILI6480BQ

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:480*272P

Dot Pitch:0.198*0.198mm

Contrast ratio:500:1

Display area:95.04*53.86mm

Module Size:105.5*67.2*2.95(W*H*D)mm

Viewing angel:70/70/50/70

Viewing Direction:6 O'clock

Luminance:160nit

Response Time:10/15ms

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃



5 inch high definition TFT lcd display with touch screen, 800x480 resolution,250nit, for vehicle display use

Zoom
Name: 5 inch high definition TFT lcd display with touch screen, 800x480 resolution,250nit, for vehicle display use
Name: 深圳市如新电子有限公司
Model: RX050A-05-TP
Brief:

Rogin 5 inch high definition TFT lcd display with touch screen has 800x480 resolution,250nit brightness, contrast ratio is 500:1 , widely used on vehicle devices.

Details

Specification



Model number: RX050A-05-TP

Drive IC: ILI6122+ILI5960

Display mode: Normally White, Transmissive

Display colors: 16.7M

Resolution: 800*480

Dot Pitch: 0.135(W)*0.135(H)mm

Contrast ratio: 700:1

Display area: 108(W)*64.8(H)mm

Module Size: 120.7(W)*75.8(H)*3.3(D)mm

Interface: RGB 24 bit

Connection Type: Connection

Pin No.: 40pin

Viewing angel: 70/70/50/70

Viewing Direction: 6 O'CLOCK

Backlight No.: 12 LED

Luminance: 250nit

Driving voltage/Current: 19.8V/40mA

Response Time: 20ms

Operating temperature:-20°C~ + 70°C

Stroage temperature:-30°C~ + 80°C

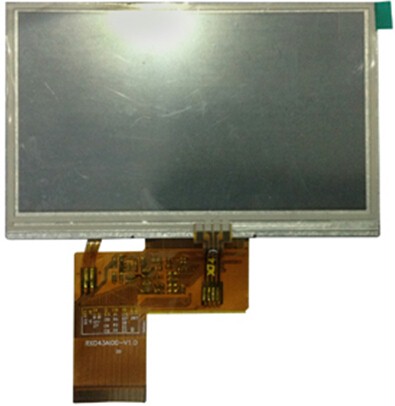

4.3 inch TFT lcd modules with touch screen ,RGB interface, contrast ratio is 500:1, for household devices use

Zoom
Name: 4.3 inch TFT lcd modules with touch screen ,RGB interface, contrast ratio is 500:1, for household devices use
Name: 深圳市如新电子有限公司
Model: RX043A-0204-TP
Brief:

Rogin 4.3 inch tft lcd modules with touch screen has 480x272 resolution and 16.7 M display color. the capacitive and resisitive is optional ;the interface is RGB 24bit, widely used in household devices.

Details

Specification



Model number: RX043A-0204-TP

LCD Brand: Chimei Innolux

Drive IC: ILI6480BQ

Display mode: Normally White, Transmissive

Display colors: 16.7M

Resolution: 480(RGB)*272

Dot Pitch: 0.198(H)*0.198(V)mm

Contrast ratio: 500:1

Display area: 95.04(H)*53.87(V)  mm

Module Size: 105.5(W)*67.2(H)*3.0(D) mm
Interface: RGB 24 bit

Connection Type: Plug Type

Pin No.: 40Pin

Viewing angel: 70/70/50/70

Viewing Direction: 6 O'clock

Backlight No.: 7 LED

Luminance:  180nit

Driving voltage/Current: 20.5V/20mA

Response Time: 25ms

Operating temperature:-20°C ~ +70°C

Stroage temperature:-30°C ~ +80°C

new type 4.3 inch TFT lcd display with 480x800 resolution, RGB 24 bit, Contrast ratio is 700: 1

Zoom
Name: new type 4.3 inch TFT lcd display with 480x800 resolution, RGB 24 bit, Contrast ratio is 700: 1
Name: 深圳市如新电子有限公司
Model: RX043A-21
Brief:

Rogin 4.3 inch TFT lcd display with 480x800 resolution, has features like: display area is 56.16*93.60mm and Contrast ratio is 700: 1,RGB 24 bit, for digital prodcut use

Details

Specification



Model number:RX043A-21

LCD Brand:HSD

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:480*800

Dot Pitch:0.117(H) *0.117(V)mm

Contrast ratio:700: 1

Display area:56.16*93.60mm

Module Size:115.60*74.38*1.34mm

Interface:RGB 24bit

Viewing angel:70/70/70/60

Viewing Direction:12 O'clcok

Backlight No.:8LED

Luminance:200nit

Response Time:4/12ms

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃

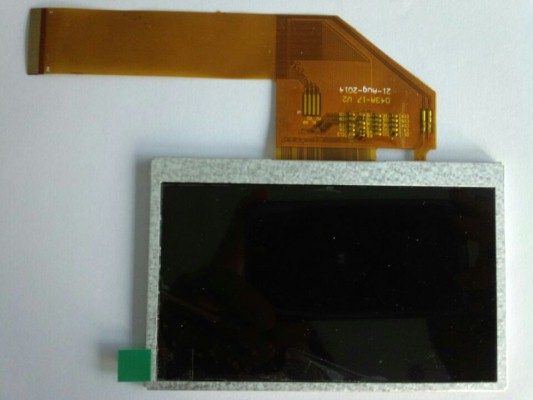

new type 4.3 inch tft lcd display with 480x272resolution,RGB interface,for vehicle display use

Zoom
Name: new type 4.3 inch tft lcd display with 480x272resolution,RGB interface,for vehicle display use
Name: 深圳市如新电子有限公司
Model: RX043A-17
Brief:

Rogin 4.3 inch tft lcd display is designed with 480x272resolution, LED backlight, the module size is 105.5*67.2*2.95mm, RGB interface, the brightness is 160nit and contrast ratio is 500:1

Details

Specification



Model number:RX043A-17

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:480x272

Dot Pitch:0.198x0.198mm

Contrast ratio:500: 1

Active area:95.04x53.86mm

Module Size:105.5*67.2*2.95mm

Interface:RGB

Viewing angel:70/70/50/70

Viewing Direction:12 O'clcok

Luminance:160nit

Response Time: 10/15 ms

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃

High definition 6.2 inch TFT LCD display with 800x480P resolution, LED backlight, for car rear mirror use

Zoom
Name: High definition 6.2 inch TFT LCD display with 800x480P resolution, LED backlight, for car rear mirror use
Name: 深圳市如新电子有限公司
Model: RX062A-01
Brief:

Rogin 6.2 inch TFT lcd display with high definition has 800x480 resolution ,display area is 137.52*77.232mm and module size is 155.20*88.2*4.8mm, it is widely used on car display.

Details

Specification



Model number: RX062A-01

LCD brand: IVO

Display mode:Normally White, Transmissive

Resolution:800*480

Dot Pitch:0.1719(H) *0.1609(V)mm

Contrast ratio:600: 1

Display area:137.52*77.232mm

Module Size:155.20*88.2*4.8mm

Pin No.:60PIN

Viewing angel:70;75;60;65

Viewing Direction:12 O'clock

Driving voltage/Current:160MA; 9.6V

Response Time:8ms

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃

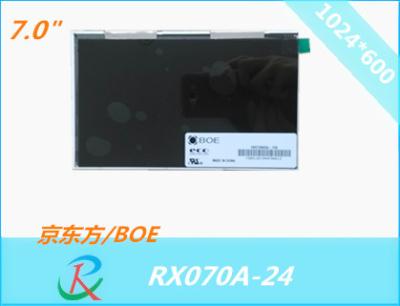

7 inch tft IPS lcd modules with high definition and full view angel, for various use

Zoom
Name: 7 inch tft IPS lcd modules with high definition and full view angel, for various use
Name: 深圳市如新电子有限公司
Model: RX070A-24
Brief:

Rogin 7 inch RX070A-24 tft IPS lcd modules with high definition and full view angel supports 1024*600 resolution and 350 nit luminance, widely used in car DVD and nevigation.

Details

Specification



Model number:RX070A-24

LCD Brand:BOE

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:1024*600

Dot Pitch:0.150 (H) X 0.150 (V)mm

Contrast ratio:900: 1

Display area:153.6*690mm

Module Size:165*102*3.4mm

Interface:LVDS

Pin No.:31PIN

Viewing angel:80;80;80;80;

Viewing Direction:12O'clock

Backlight No.:24LED

Luminance:350nit

Response Time:30ms

Operating temperature:-20℃- +70℃

Stroage temperature:-30℃- +80℃

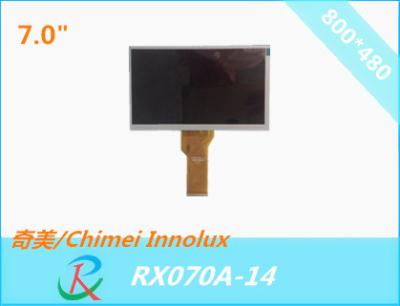

7.0 inch tft lcd module ,lcd display with long FPC,800*480pixels,compitable with AT070TN94

Zoom
Name: 7.0 inch tft lcd module ,lcd display with long FPC,800*480pixels,compitable with AT070TN94
Name: 深圳市如新电子有限公司
Model: RX070A-14
Brief:

7.0 inch tft lcd module is compitable with AT070TN94 and supports 9.6V driving power supply. This module has long FPC, 21 LED backlight and 400nits luminance.It is durable in use.

Details

Product  basic  attribute


Model number:RX070A-14

LCD Brand:Innolux

Drive IC:EK9713+EK73002

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:800*480

Dot Pitch:0.0642*0.1790

Contrast ratio:500: 1

Display area:154.08*85.92mm

Module Size:165*100*5.5mm

Interface:RGB 24bits

Connection Type:splice type

Pin No.:50PIN

Viewing angel:70/70/50/70

Viewing Direction:12 O'clock

Backlight No.:21 LED

Luminance:400nit

Driving voltage/Current:9.6V/140mA

Response Time:25ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃



5.0 inch high brightness 800*480 lcm display ,widely used in car rearview

Zoom
Name: 5.0 inch high brightness 800*480 lcm display ,widely used in car rearview
Name: 深圳市如新电子有限公司
Model: RX050A-0701
Brief:

5.0 inch high brightness lcd module has high resolution and 18 LED backlight. It is widely used on car rearview. It is able to produce high defination and full color images.

Details

Product basic attribute

Model number:RX050A-0701

LCD Brand:Innolux

Drive IC:ILI6122+ILI5960

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:800*480

Dot Pitch:0.135(H) *0.135(V)

Contrast ratio:700: 1

Display area:108(H)*64.8(V)mm

Module Size:120.7*75.8*3.1mm

Interface:RGB 24bits

Connection Type:splice type

Pin No.:40PIN

Viewing angel:70/70/50/70

Viewing Direction:6 O'clock

Backlight No.:18 LED

Luminance:600nit

Driving voltage/Current:19.2V/60mA

Response Time:20ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

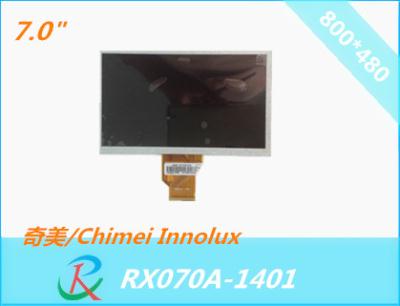

7.0 inch lcd module with short FPC,800*480resolution,compatible with AT070TN92

Zoom
Name: 7.0 inch lcd module with short FPC,800*480resolution,compatible with AT070TN92
Name: 深圳市如新电子有限公司
Model: RX070A-1401
Brief:

7.0 inch lcd module with short FPC is widely used in the digital area. This module is compatible with AT070TN92 and its display area is 154.08*85.92mm. Quality promised and enjoy one year guarantee

Details



Product basic attribute

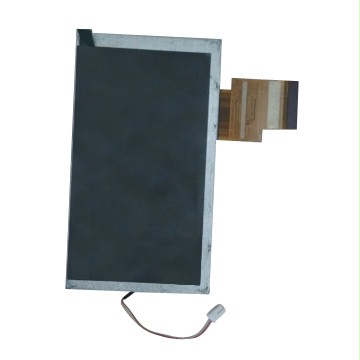

Model number:RX070A-1401

LCD Brand:Innolux

Drive IC:EK9713+EK73002

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:800*480

Dot Pitch:0.0642*0.1790

Contrast ratio:500:1

Display area:154.08*85.92mm

Module Size:165*100*5.5mm

Interface:RGB 24bits

Connection Type:splice type

Pin No.:50PIN

Viewing angel:70/70/50/70

Viewing Direction:12 O'clock

Backlight No.:50PIN

Luminance:200cd/㎡

Driving voltage/Current:9.6V,120mA

Response Time:25ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃








5.0 inch FOG with 800*480 pixels resolution,long FPC

Zoom
Name: 5.0 inch FOG with 800*480 pixels resolution,long FPC
Name: 深圳市如新电子有限公司
Model: RX050A-06
Brief:

5.0 inch FOG is mainly used for projector. It has 800*480 pixels resolution and 108*64.8mm display area. Its price is very competitive

Details

Product basic attribute

Model number:RX050A-06

LCD Brand:Innolux

Drive IC:6122+5960

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:800*480pixels

Dot Pitch:0.135(H) *0.135(V)

Contrast ratio:350: 1

Display area:108*64.8mm

Module Size:120.7*75.8*3.1mm

Pin No.:50PIN

Viewing angel:50;60;65;65

Viewing Direction:6 o'clock

Response Time:20ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

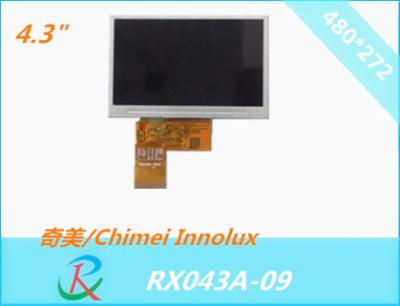

4.3 inch lcd module with HX8257 drive IC,95.04*53.86pixels resolution, various use

Zoom
Name: 4.3 inch lcd module with HX8257 drive IC,95.04*53.86pixels resolution, various use
Name: 深圳市如新电子有限公司
Model: RX043A-09
Brief:

4.3 inch lcd module is in the shape of 105.5*67.2*3.0mm and has 95.04*53.86pixels resolution. It is adopted in digital field and apparatus.

Details

Product basic attibute


Model number:RX043A-09

LCD Brand:Pegasus

Drive IC:HX8257

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:480*272pixels

Display area:95.04*53.86mm

Module Size:105.5*67.2*3.0mm

Pin No.:40PIN

Viewing Direction:12 o'clock

Backlight No.:7LED

Luminance:120nits

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

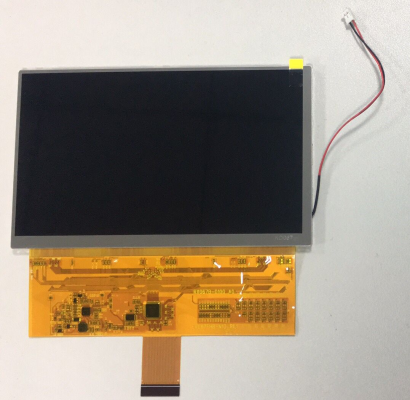

7.0 inch color high brightness lcd module with 1024*600 resolution

Zoom
Name: 7.0 inch color high brightness lcd module with 1024*600 resolution
Name: 深圳市如新电子有限公司
Model: RX070A-24
Brief:

7.0 inch high brightness lcd module is designed with 1024*600 resolution and compatible with original HV070WSA-100 IPS drive IC. It is capable of producing pictures with high defination and full color display.

Details

Product basic attribute

Model number:RX070A-24

LCD Brand:BOE

Drive IC:原装HV070WSA-100 IPS

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:1024*600pixels

Dot Pitch:0.150 (H) X 0.150 (V)

Contrast ratio:900: 1

Display area:153.6*690mm

Module Size:165*102*3.4mm

Pin No.:31PIN

Viewing angel:80;80;80;80;

Viewing Direction:12 o'clock

Backlight No.:24 LED

Luminance:600nits

Response Time:30ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃



4.3 inch tft color lcd module with 480*272 resolution and 20.5V power supplier

Zoom
Name: 4.3 inch tft color lcd module with 480*272 resolution and 20.5V power supplier
Name: 深圳市如新电子有限公司
Model: RX043A-0204
Brief:

4.3 inch color lcd module is commonly used on microphone and digital products, etc. This module has LED backlight and 105.5*67.2*3.0mm outline size. It is in fine quality and workable price

Details

Product basic attibute

Model number: RX043A-0204

LCD Brand: Chimei Innolux

Drive IC: ILI6480BQ

Display mode: Normally White, Transmissive

Display colors: 16.7M

Resolution: 480(RGB)*272

Dot Pitch: 0.198(H)*0.198(V)

Contrast ratio: 500:1

Display area: 95.04(H)*53.87(V) mm

Module Size: 105.5(W)*67.2(H)*2.95(D) mm
Interface: RGB 24 bit

Connection Type: Plug Type

Pin No.: 40Pin

Viewing angel: 70/70/50/70

Viewing Direction: 6 O'clock

Backlight No.: 7 LED

Luminance:  180nits

Driving voltage/Current: 20.5V/20mA

Response Time: 25ms

Operating temperature:-20°C ~ +70°C

Storage temperature:-30°C ~ +80°C

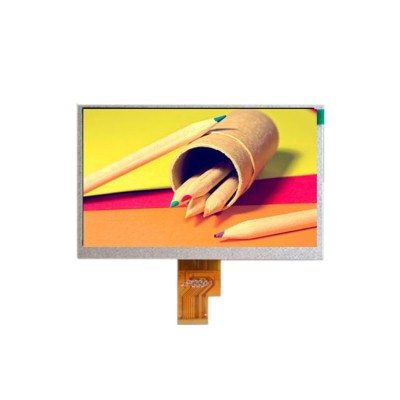

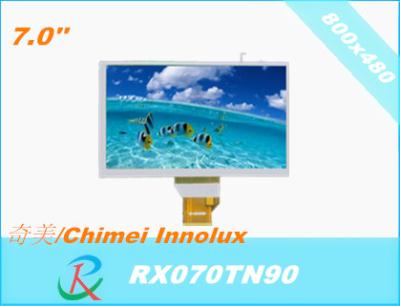

7.0 inch lcd module with 70/70/50/70 viewing angel,154.08*85.92mm display area,for various use

Zoom
Name: 7.0 inch lcd module with 70/70/50/70 viewing angel,154.08*85.92mm display area,for various use
Name: 深圳市如新电子有限公司
Model: RX070TN90
Brief:

The 7.0 inch lcd module with original brand AT070TN90 is designed with the features of 70/70/50/70 viewing angel and 250nits luminance. It is flexibly used on the consumer products according to requirements.

Details

Product basic attibute


Model number: RX070TN90

LCD Brand: Innolux

Display mode:Normally White, transmassive, TN

Display colors:16.7M

Resolution:800(RGB)*480

Dot pitch : 0.0642*0.1790mm

Module Size:162.5.*96.62*1.43mm

Viewing Direction:6 o'clock
Viewing angel: 75/75/70/75

Response time: 15ms

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃

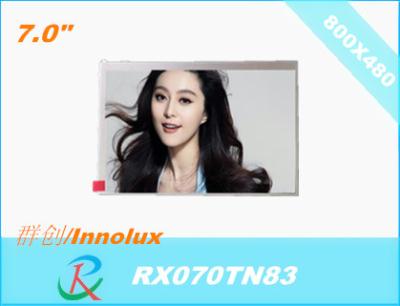

7.0 inch lcd module with touch panel,compatible with AT070TN83 ,155.3*94.3mm Active area

Zoom
Name: 7.0 inch lcd module with touch panel,compatible with AT070TN83 ,155.3*94.3mm Active area
Name: 深圳市如新电子有限公司
Model: RX070TN83
Brief:

7.0 inch lcd module with touch panel is mostly used in the area of consumer electronics. It is designed with 800(RGB)*480(WVGA) resolution and its outline size is 165.0*104.0*5.5mm

Details

Product basic attribute


Model number:RX070TN83

Display mode:Normally White, Transmissive

Display colors:16.7M

Resolution:800(RGB)*480(WVGA)

Display area: 152.40*91.44mm

Module Size:165.0*104.0*5.5mm

Contrast ratio: 500:1

Pin No.:40PIN

Viewing Direction:6 o'clock

Backlight No.:12LED

Luminance:350nits

Driving voltage/Current:3.3V/300MA

Operating temperature:-20℃- +70℃

Storage temperature:-30℃- +80℃




More>>

News Comment / Latest Comments

Quick Comment / Quick Comments

TITLE:
NAME
CONTENT
(*)

Products

ContactUs

Tel: +86-13538144893

       +86-0755-29850743

Fax: +86-0755-29113212

COntact  person: Emma Gao(13538144893)

QQ:2744485615

E-mail: lcd.emma@rogin.com.cn

Add: Building16th 8thFloor, 8th Industrial Area, Shajing Republican Street, Baoan District, Shenzhen City
