2.0 Inch - 3.5 Inch lcd monitor

3.5 inch color lcd module 320*240 MCU/SPI interface

Zoom

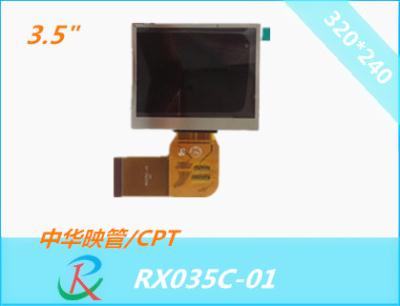

Name: 3.5 inch color lcd module 320*240 MCU/SPI interface
Name: Shenzhen Rogin Electronics CO., LTD
Model: RX035C-01
Brief:

3.5 inch lcd panel widely used in industry field , digital field and other mini display applications

Details

Product basic attributes

Model number: RX035C-01
Drive IC: SSD2119

Display mode: Normally White, Transmissive

Display colors: 16.7M

Resolution: 320(RGB)*240

Dot Pitch: 0.219*0.219

Contrast ratio: 600:1

Display area: 70.08(H)*52.56(V)mm

Module Size: 77.6(W)*64.4(H)*3.1(D)mm
Interface: MCU6/8/9/16/18/SPI

Connection Type: Plug Type

Pin No.: 50Pin

Viewing Direction: 12 O'clock

Backlight No.: 6LED

Luminance: 200nits

Driving voltage/Current: 9.6V/25mA

Response Time: 20ms

Operating temperature:-20°C ~ +70°C

Storage temperature:-30°C ~ +80°C

More>>
