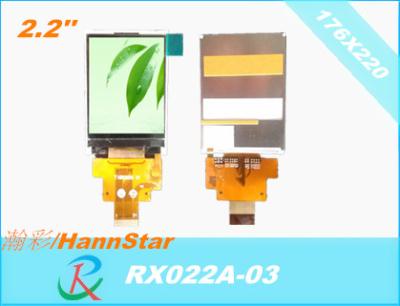

2.2 inch tft lcd module ,176*220 resolution with 31.68*39.65mm display area and 3 LED

Zoom
Name: 2.2 inch tft lcd module ,176*220 resolution with 31.68*39.65mm display area and 3 LED
Name: Shenzhen Rogin Electronics CO., LTD
Model: RX022A-03
Brief:

2.2 inch lcd module has 176*220(rgb) resolution and 31.38*39.65mm display area with 3 LED. Its module size is 40.2(W)*55.6(H)*2.35(D)mm and it is widely used in industry area.

Details



Product basic attribute


Model number：RX022A-03

LCD Brand：HSD

Drive IC：ILI9225G

Display mode：Normally White, Transmissive

Display colors：262K

Resolution：176*220

Dot Pitch(H*V)：0.198*0.198mm

Contrast ratio：500:1

Display area：34.85*43.56mm

Module Size(W*H*D)：40.2*55.6*2.35mm

Interface：80808bit

Connection Type：splice type

Pin No.：24PIN

Viewing angel：12 O'clock

Viewing Direction：12

Backlight No.：4LED

Luminance：160cd/㎡

Driving voltage/Current：3.2V/60mA

Response Time：8ms

Operating temperature：-20℃- +70℃

Storage temperature：-30℃- +80℃
